Cooler typeSampling cooler生產廠家型號規格
Your location : Home > Product > Cooler type

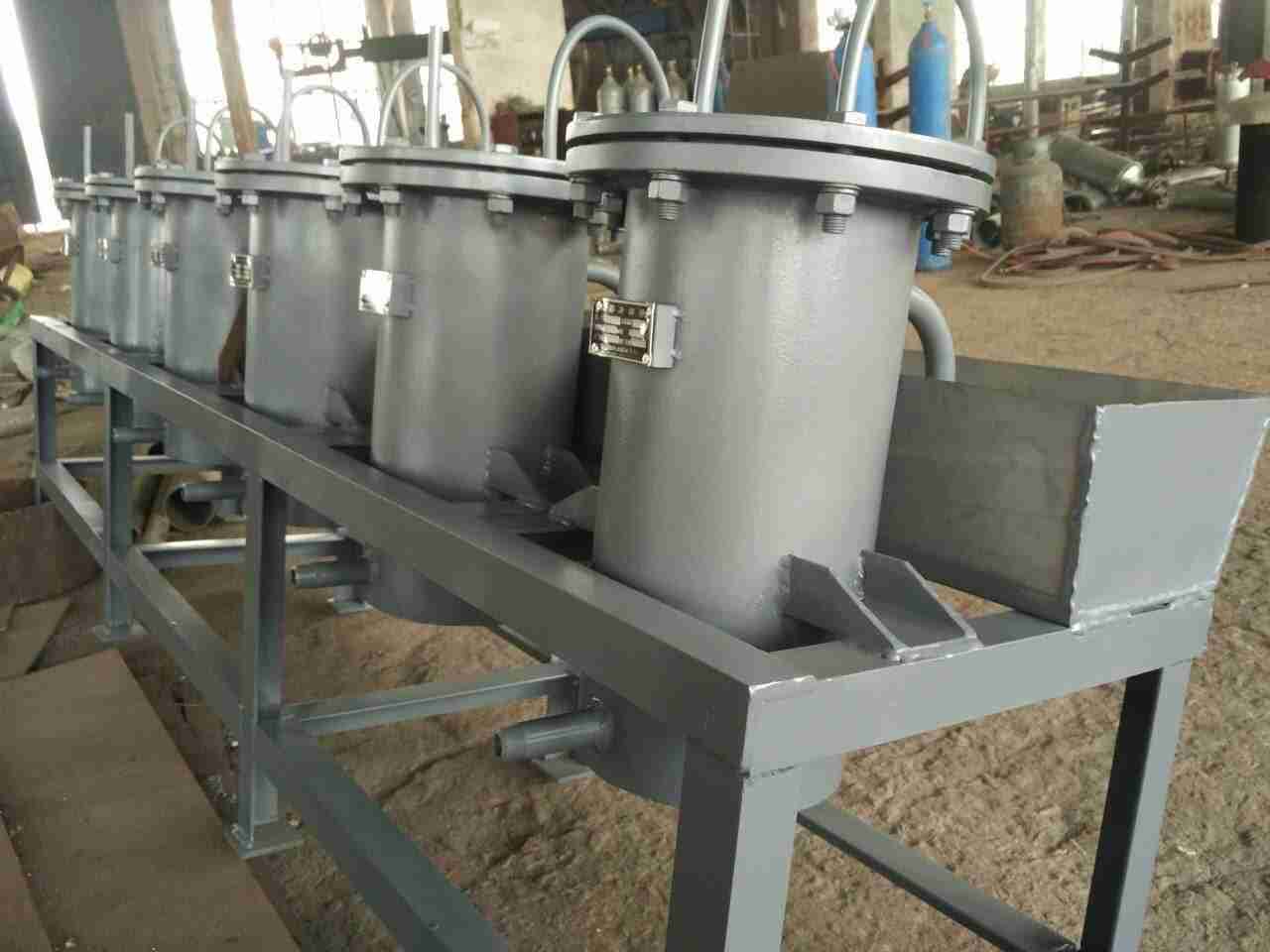

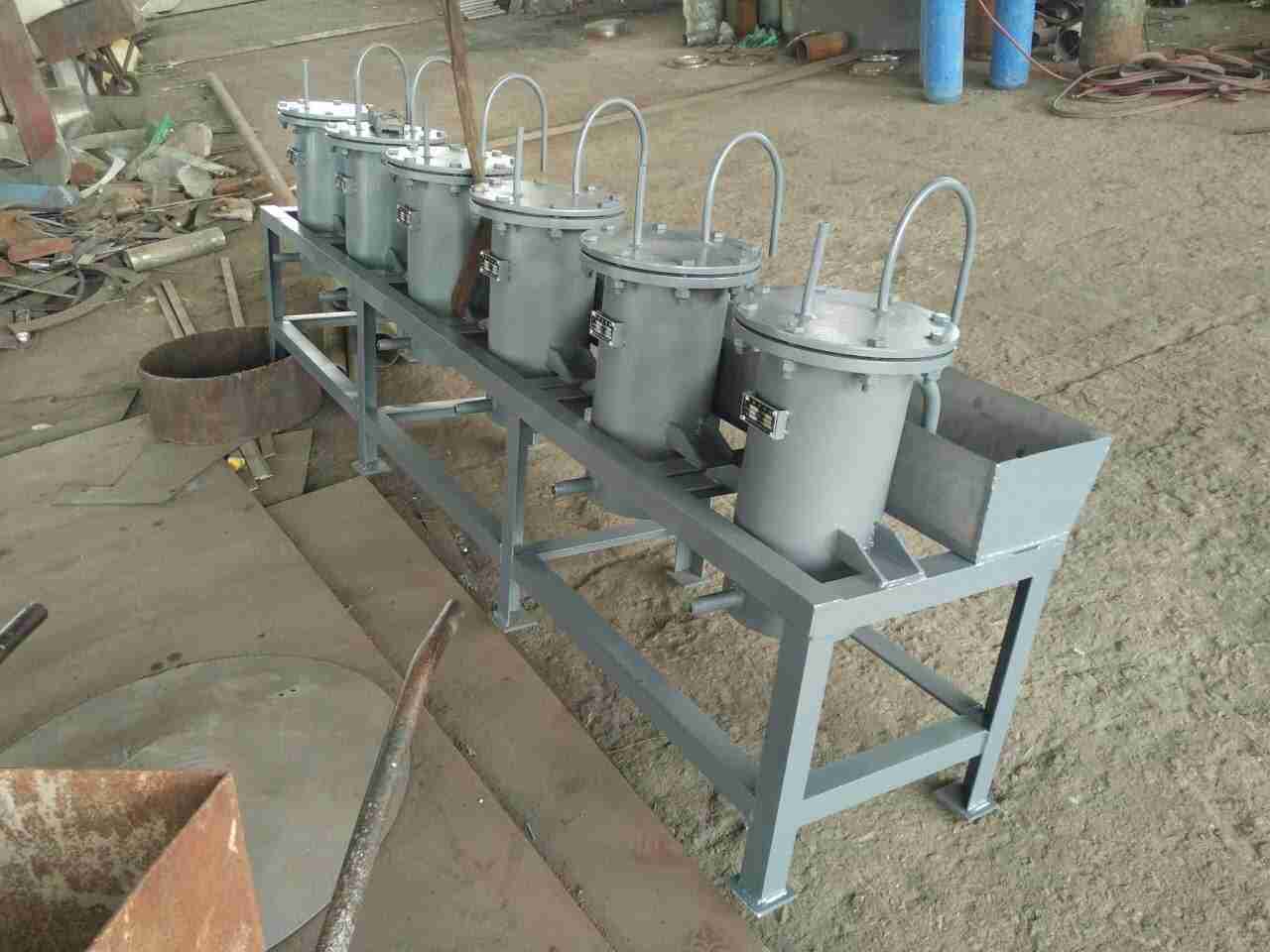

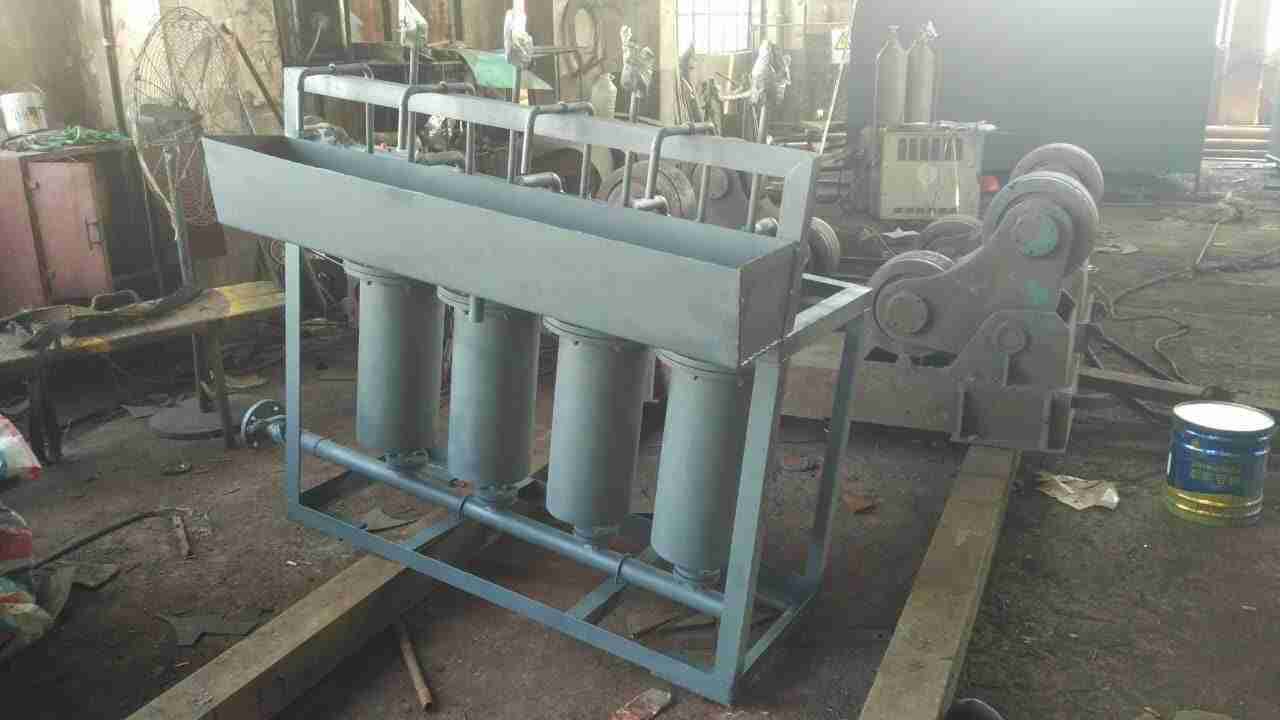

Sampling cooler
Sampling cooler
Sampling cooler
Sampling cooler

Sampling cooler

Introduction to sampling coolers of soda: Solid sampling cooler is used for power plants, power stations, steel smelting, chemical, textiles, printing and dyeing and other boiler room furnace water and sampling cooler coolant. The sampling cooler can meet the standards of DL/T457-91 in the power industry , Met the sampling test requirements.
Online inquiry
上一產品 : Steam -seal cooler
下一產品 : Dual -connected oil cooler
  • Content details

Introduction to sampling coolers of soda: Soda sampling cooler is used for power plants, power stations, steel smelting, chemical industry, textiles, printing and dyeing and other boiler room furnace water and soda sampling coolant. , While high temperature is not easy to sampling, and it is not convenient to determine. Side sampling cooler can cool the furnace water to (30-40 degrees), cool the steam into water and cool to (30-40 degrees), which is convenient for operators to safely sampling and reaches the temperature of the cooling medium to less than 30-40 degrees. Met the sampling test requirements.


Overview of boiler sampling cooler: Soda sampling cooler, stove water sampling cooler/boiler sampling cooler is used for power plants, power stations, steel smelting, chemical, textiles, printing and dyeing and other boiler water, water sampling cooler coolant, and the species series: Steam sampling cooler, furnace water sampling cooler, sampling cooler, hydrophobic sampling cooler, and condensed sample cooler. The temperature of the boiler and thermal-water and steam is high, while high temperatures are not easy to sample and are inconvenient to determine. Sampling cooler can cool the furnace water to (30-40 degrees), cool the steam into water and cool to (30-40 degrees) to facilitate the safe sampling and reaching the temperature of the cooling medium to below 30-40 degrees, and the sampling is taken. The cooler can meet the standards of the-Hua-Republic-Electric Power Industry DL/T457-91, and meet the sampling test requirements.

The main application sampling-position:

Specification

model


管內設計
壓力 MPa

In -tube design

temperature


cool down

area

M2

Snake -shaped tube

/Spiral tube specification


Material

QYL-108

<5.4

<450

0.2


?8X2
?10X2
?12X2

There are the following materials for customers to choose from:


(1) Outer tube: carbon steel

Drive tube: stainless steel 304


(2) Outer cylinder: stainless steel 304

Drive tube: stainless steel 304


QYL-1330.25
QYL-1590.25

QYL-219

0.38

QYL-254

0.45

QYL-273

0.54

QYL-325

0.92

QYL-159

<10.0

<540

0.25

?18X3

QYL-219

0.38

QYL-254

0.45

QYL-273

0.69

QYL-325

0.92

Project sampling-Name sampling-location

Exit the water tank export to the water tank after taking the sample divorce of the water

Provincial Coal Master-Give Watermaker Coal Lifting-

Furnace water sampling points-evaporating boiler furnace water according to the requirements of the boiler factory

Saturated steam sampling score-evaporate boiler saturated steam

The heat device sampling high and low temperature before thermal steam

Sampling of overheated heat steam and temperature -excessive steamers

Single of condensation water-evaporating boiler condensate water exit

Hydrophobic heater Hydividation Heater Exit

Hydrophobic hydrophobic tank hydrophobic export

Hydrophobic water dredging export of heater

Production back to the water to pick up the water tank and return water to the water pipe and exit

Rehabilitation water sampling homemade cooling water self -made condensate pipe


Remarks: Of course, there are other liquid or gas samples such as sampling medium water, steam and other liquid or gas sampling, etc., can use sampling cooler-overheating sampling difficulty problems. Sample sampling of furnace water sampling cooler-location detailed diagram:


Boiler sampling device cooler-: Singlery sample cooler consists of 9 types of accessories of 9 types of accessories 1. Cooling water into the water inlet 2. Cooling pipe 3. Shells 4, ontology 7. Cooling medium sampling port (Here the medium of furnace water sampling cooler-medium can be water, steam and other liquid or gas sampling, etc.) 8. Cooling water outlet water outlet 9. Install the leg sampling sampling of the cooler sampling device Equipment. The


Precautions for furnace water sampling cooler: The sampled catheter uses stainless steel pipes. Carbon steel pipes or bronze pipes cannot be used.


Technical requirements for furnace water sample cooler: 1. Single sampling of soda soda
